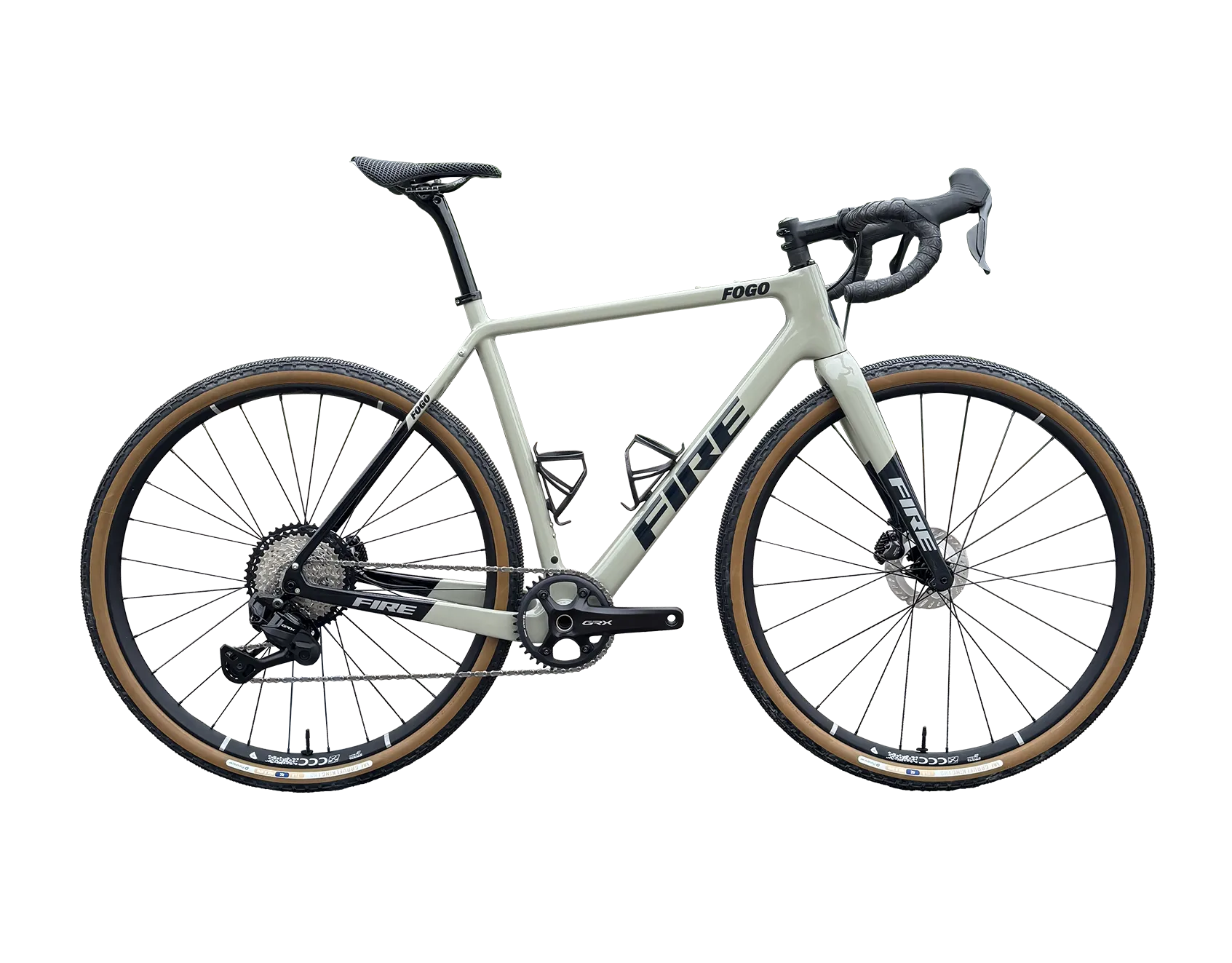

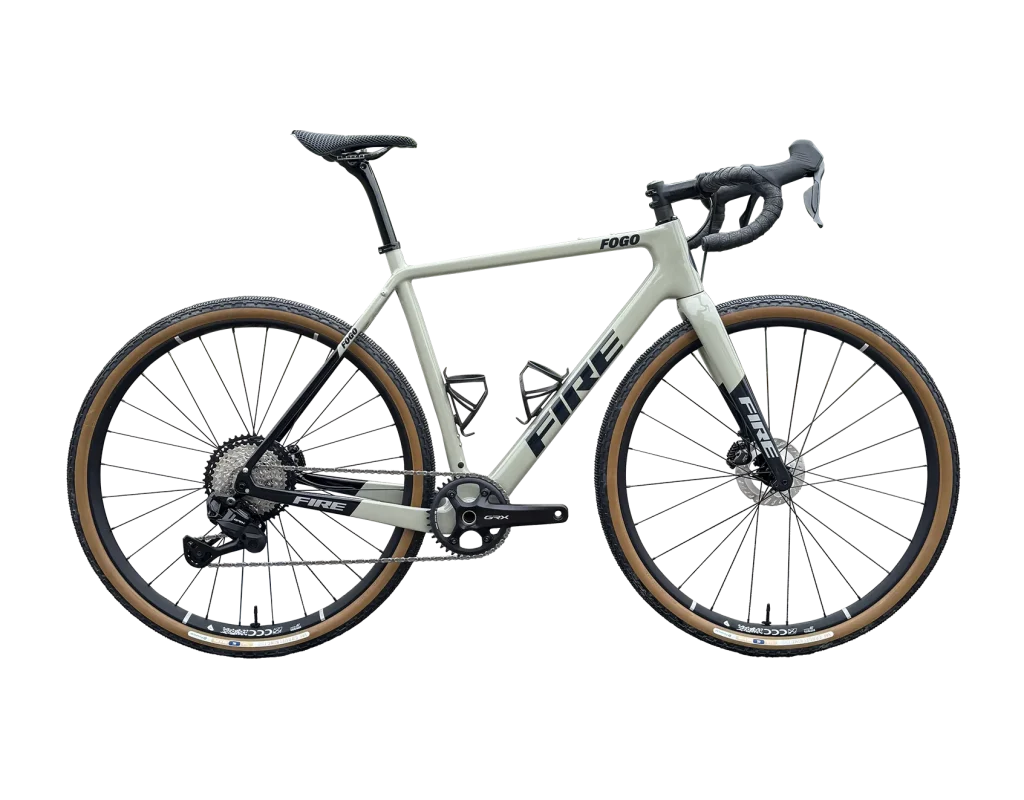

FOGO ‘G.S’ (1x12sp.)

Original price was: £3,800.00.Current price is: £3,040.00. Free Delivery

- XS - Original price was: £3,800.00.Current price is: £3,040.00. Free Delivery
Out of stock
- S - Original price was: £3,800.00.Current price is: £3,040.00. Free Delivery
- M - Original price was: £3,800.00.Current price is: £3,040.00. Free Delivery
- L - Original price was: £3,800.00.Current price is: £3,040.00. Free Delivery
- XL - Original price was: £3,800.00.Current price is: £3,040.00. Free Delivery

Clear

Description (click to expand)

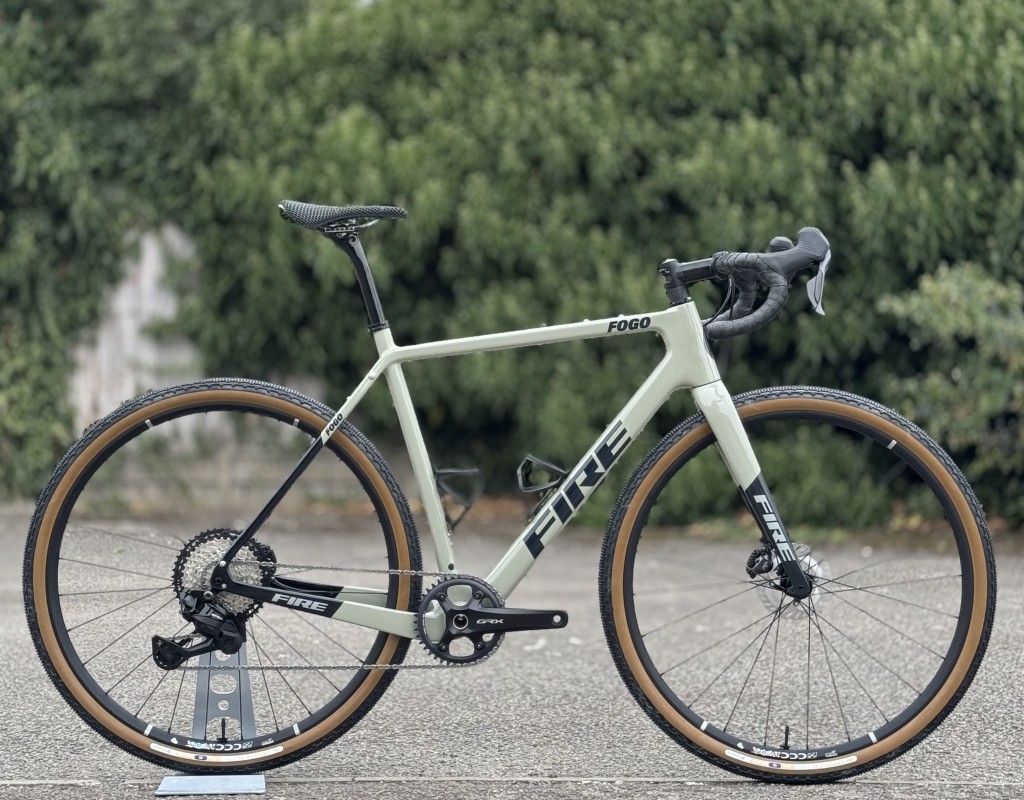

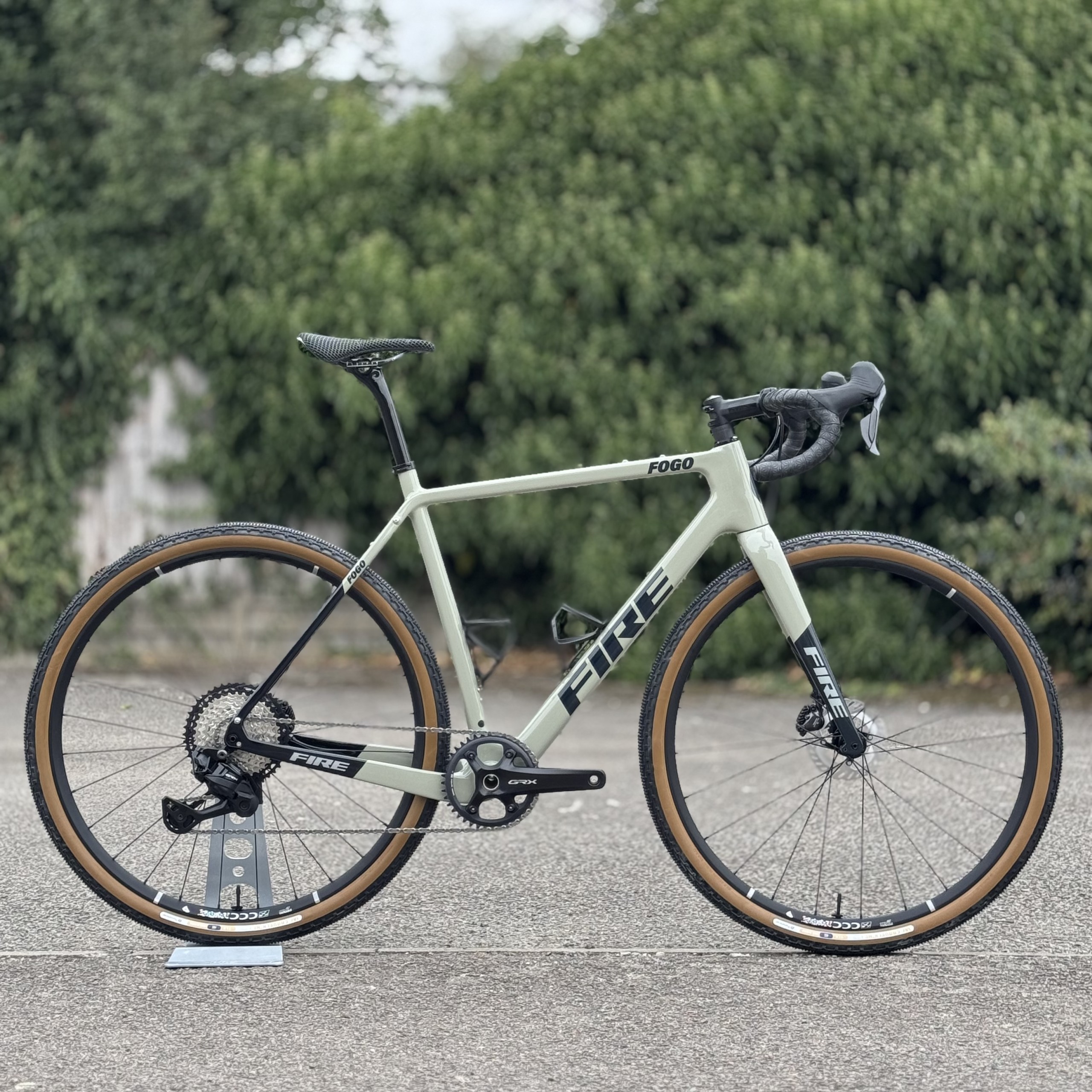

Inspired by the volcanic island, the Fogo is an adventure beast designed to erupt and take your breath away. Whether lighting up gravel paths and trails, pushing the limits on muddy tracks or simply making your mark on the roads, the Fogo will truly leave you with a smile on your face. An exceptionally versatile bike capable on a wide variety of terrain, the Fogo will allow you to explore anywhere from mountain passes to your local trails with confidence – the only limit is your imagination!

Features

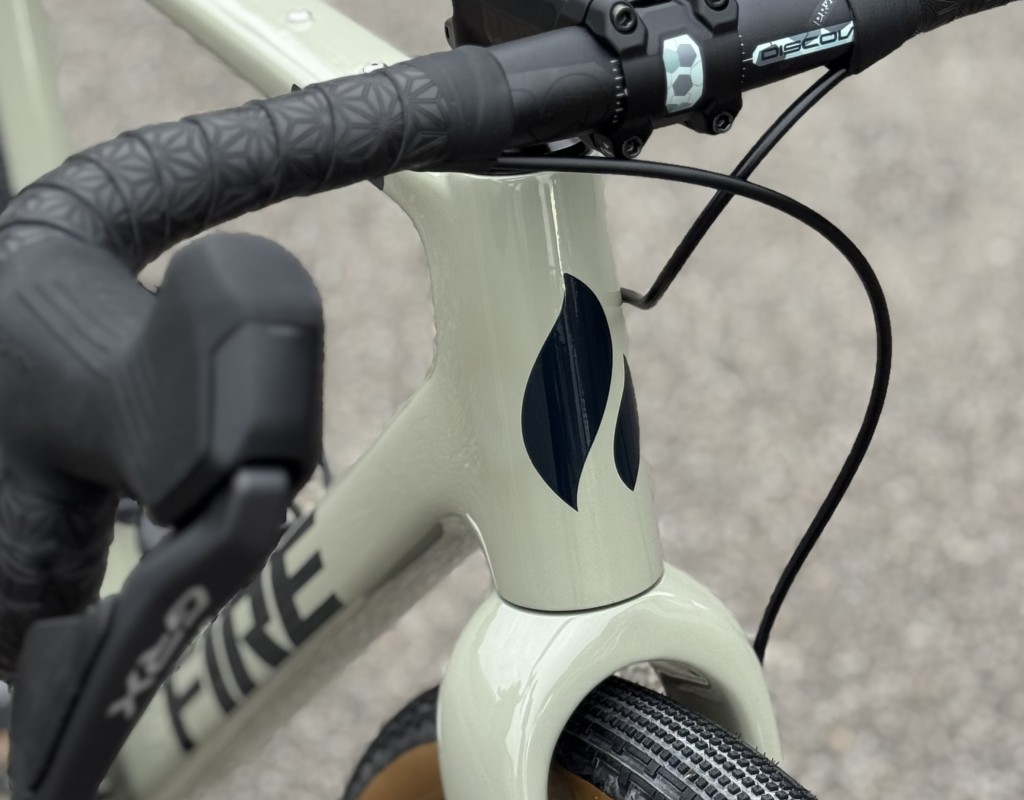

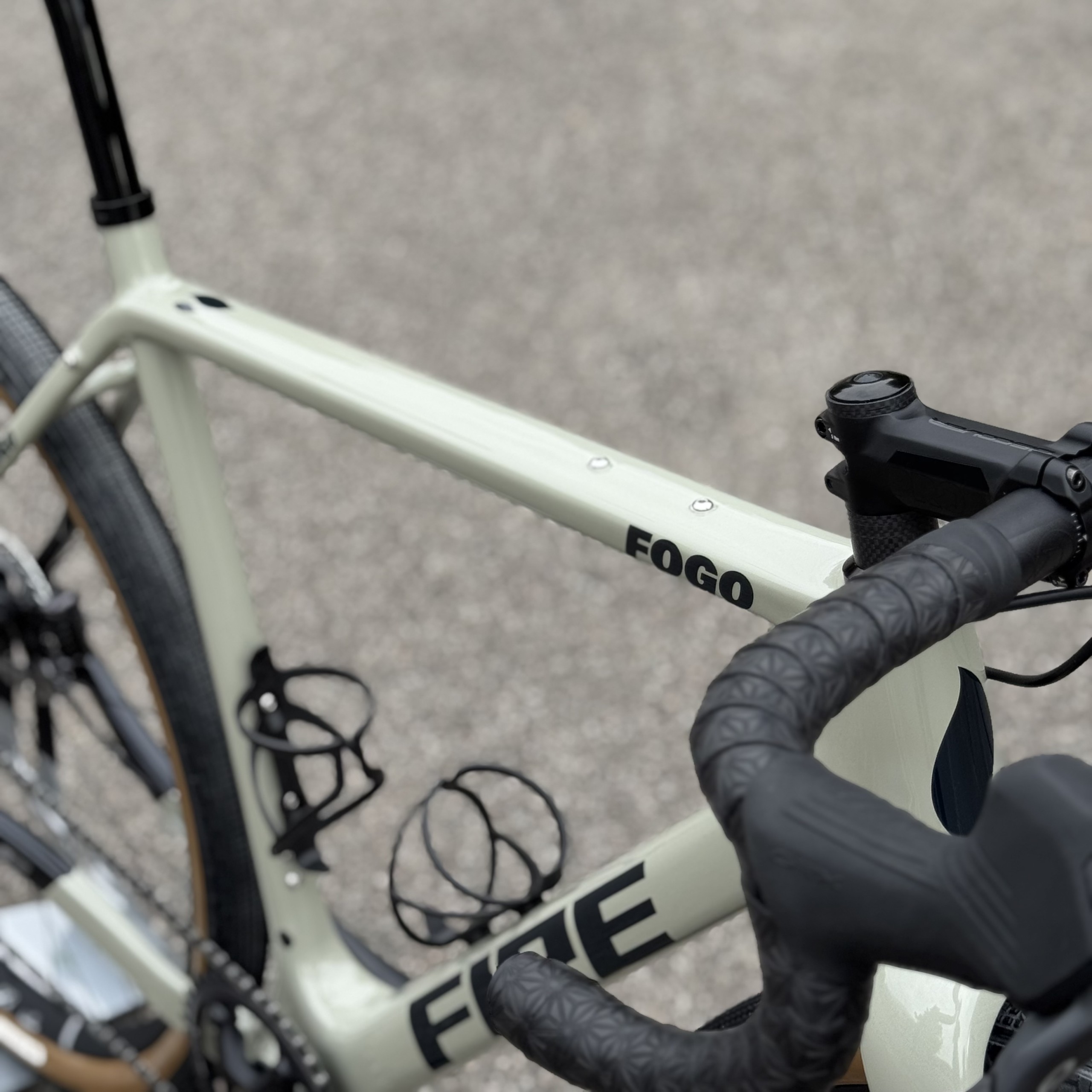

Fire full carbon frame and fork
Shimano GRX 820 (1x) groupset
Hunt X-Wide alloy gravel wheelset
PRO finishing kit

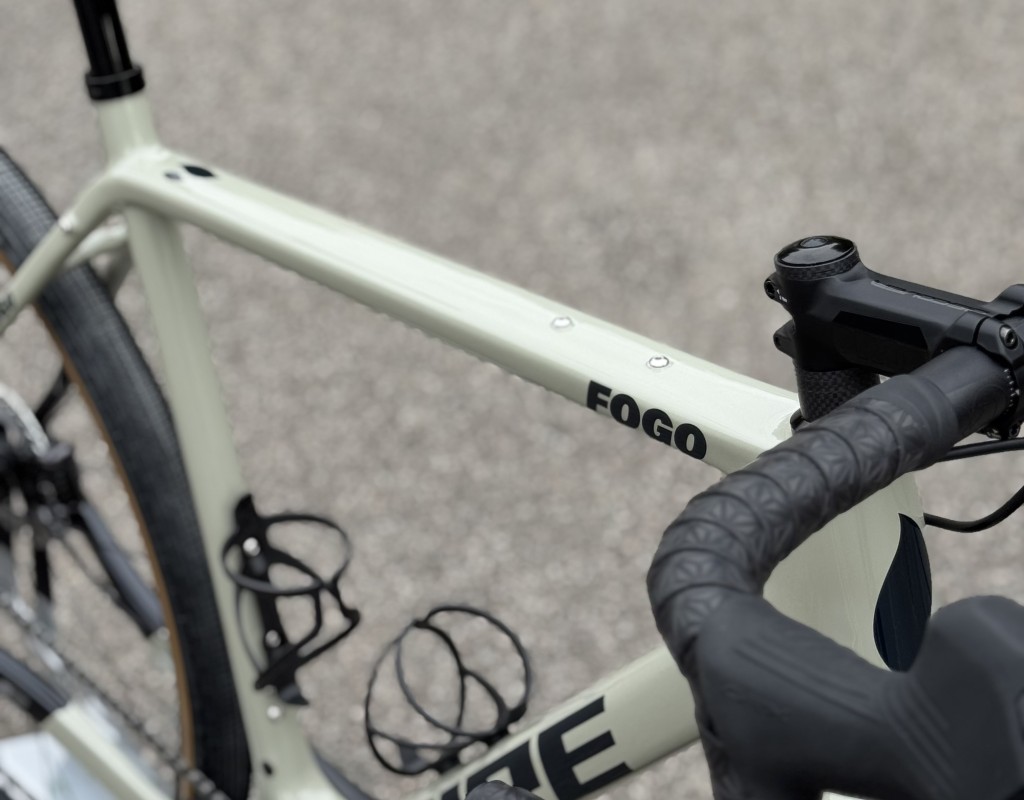

Multiple frame attachment points for bags and guards

Make an Enquiry

Custom build available

Specification

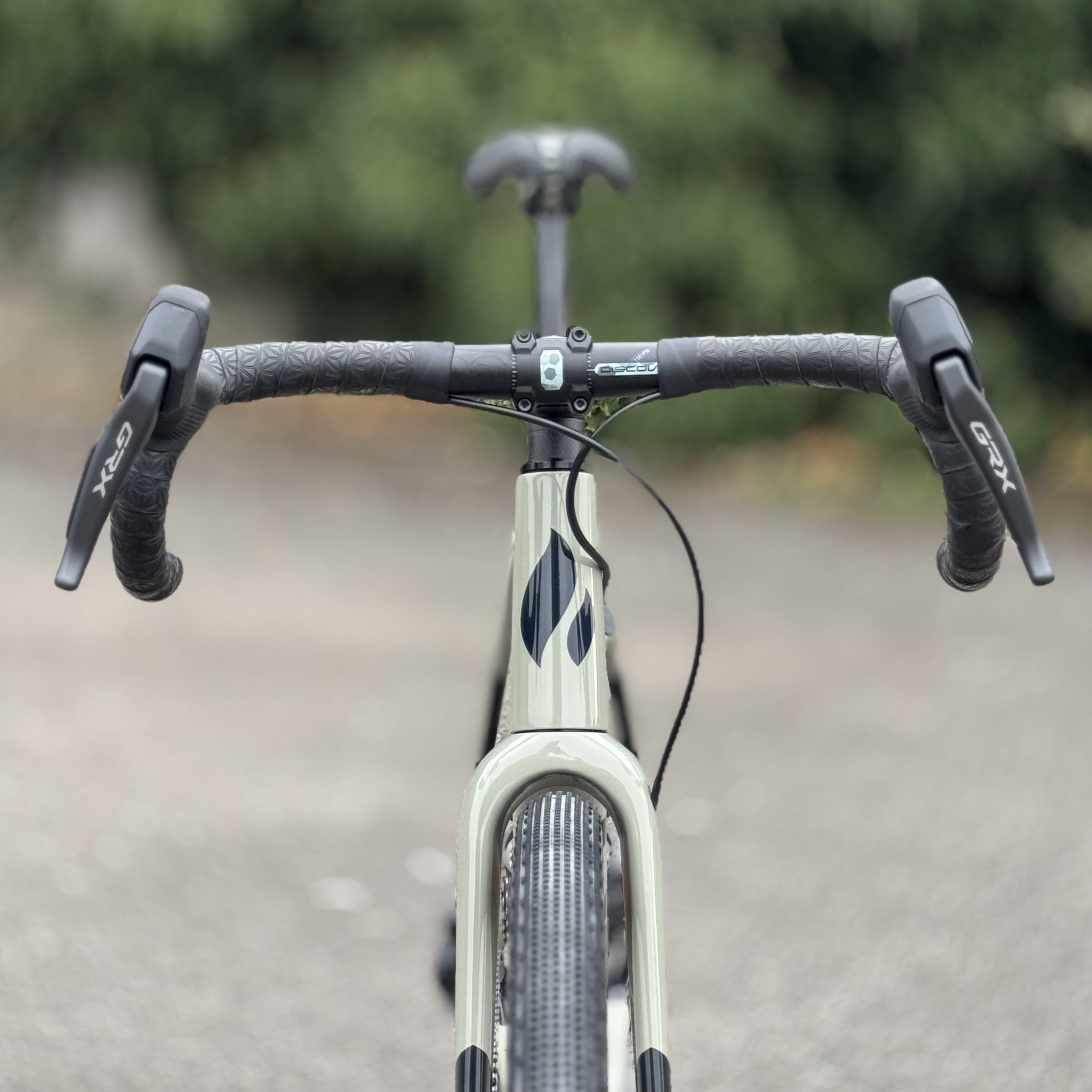

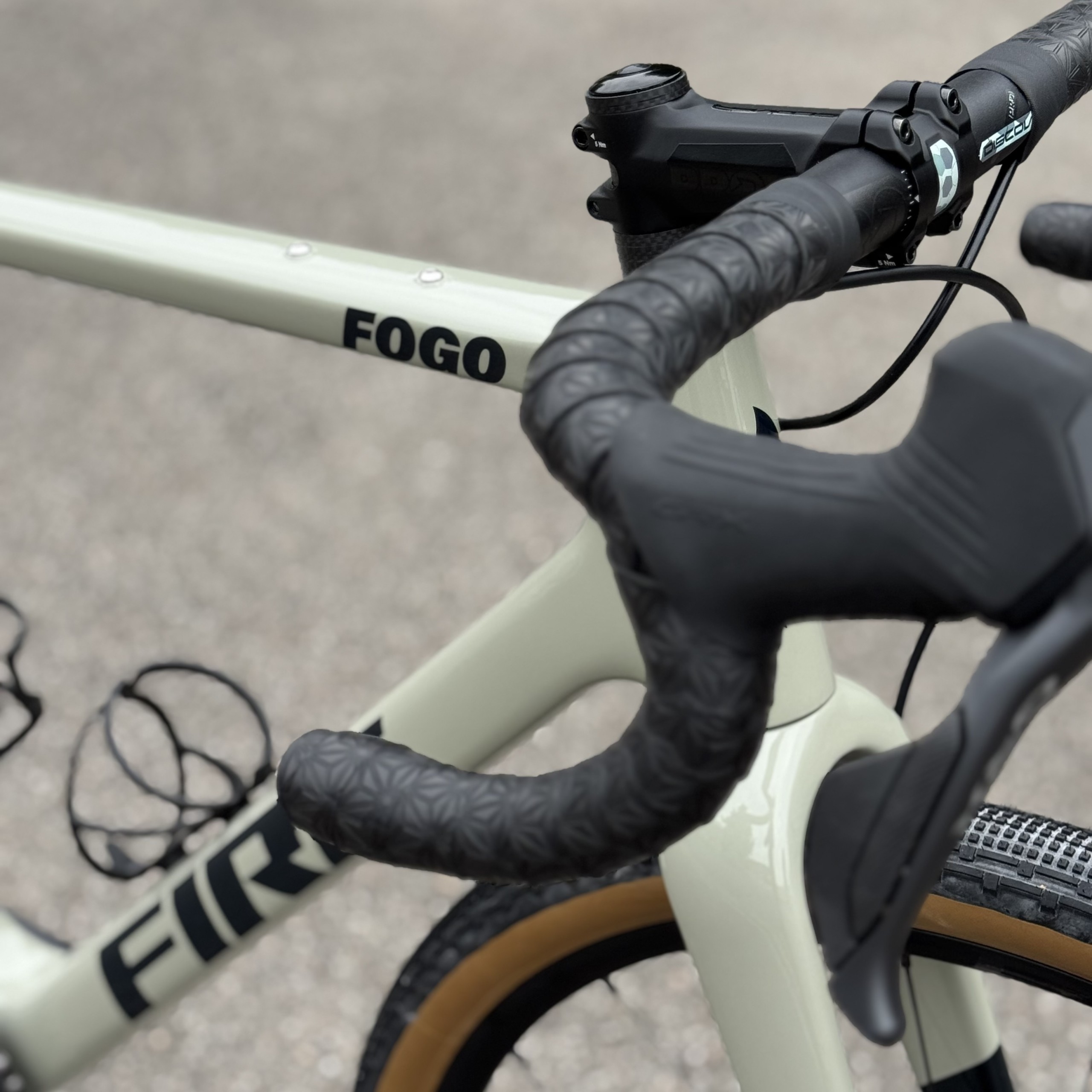

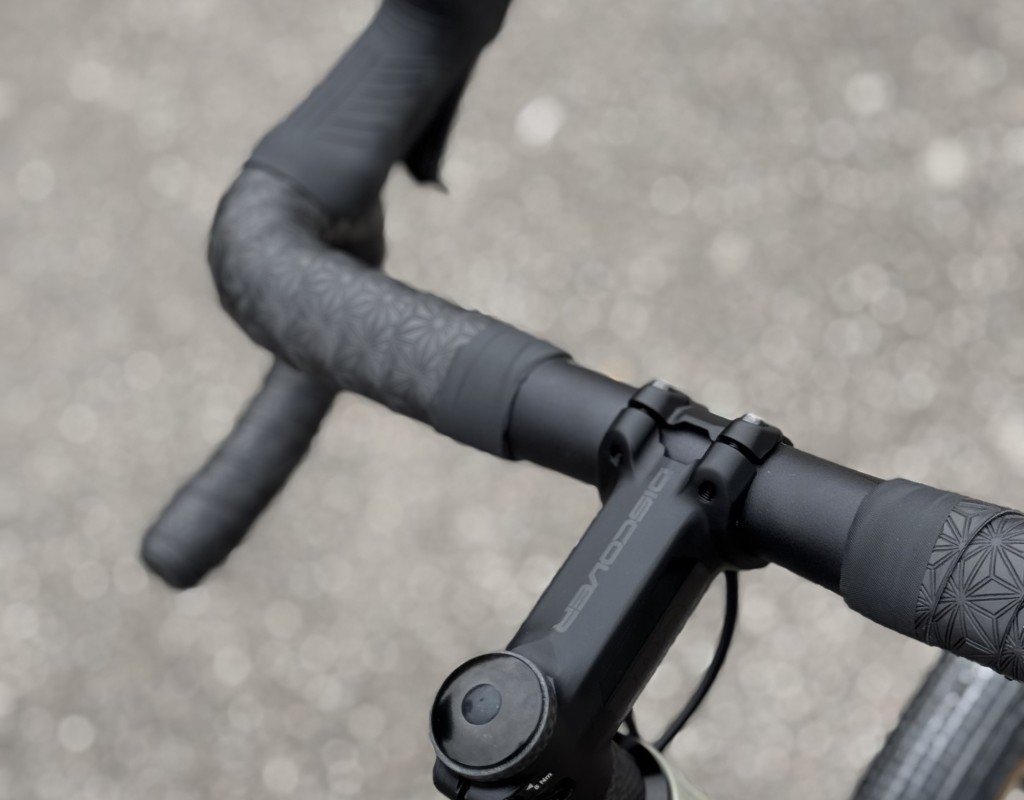

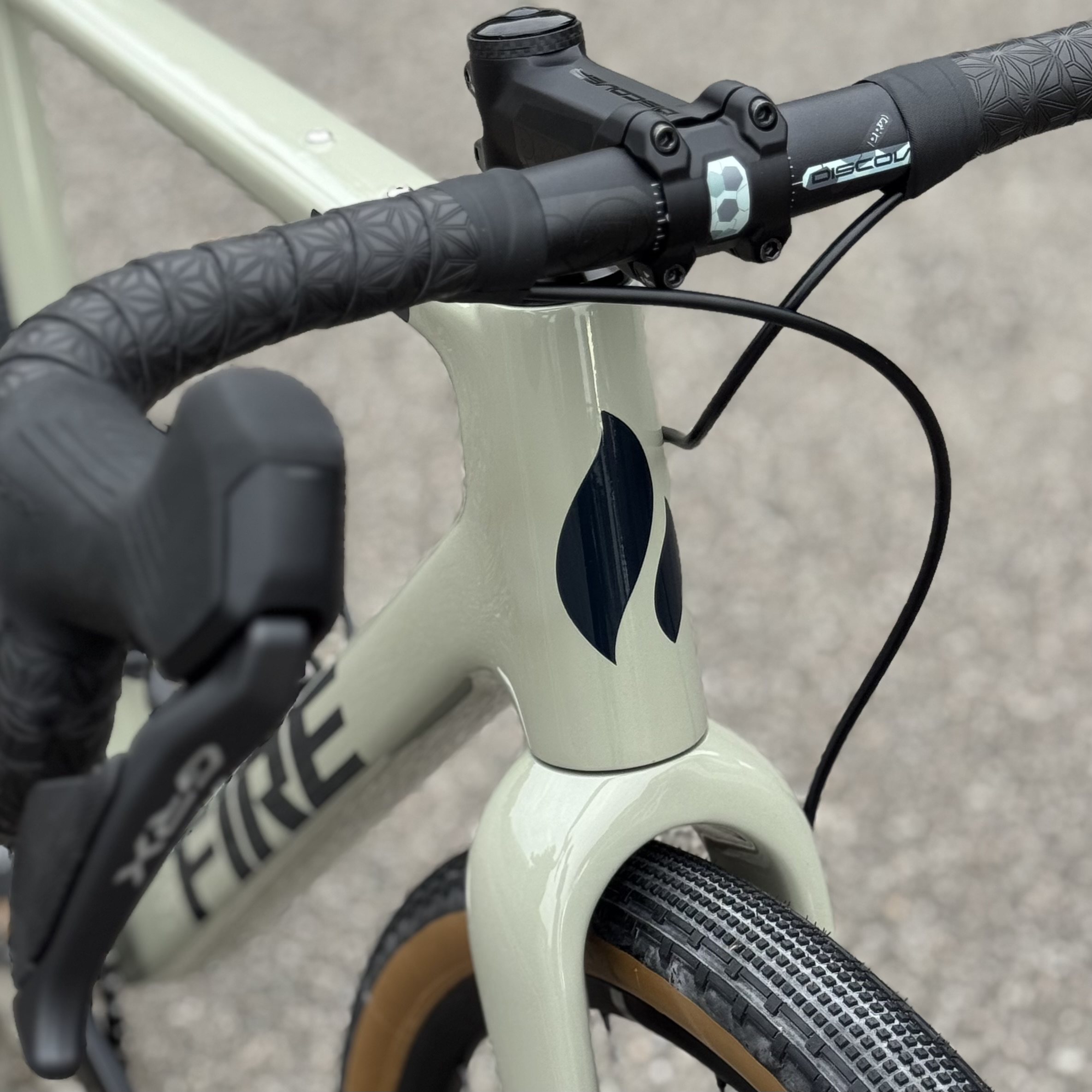

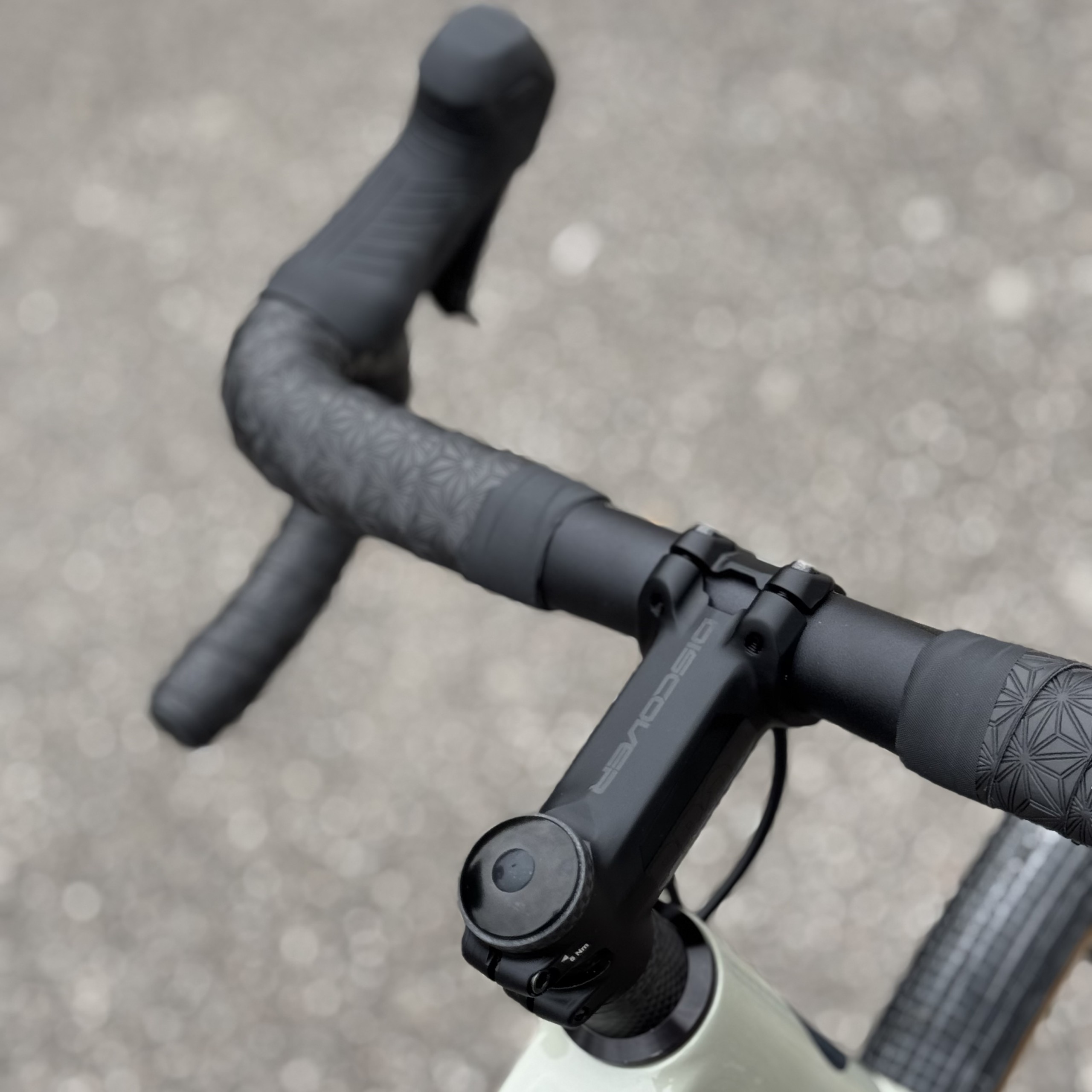

Handlebar

PRO Discover

PRO Discover

Seatpost

Fogo carbon

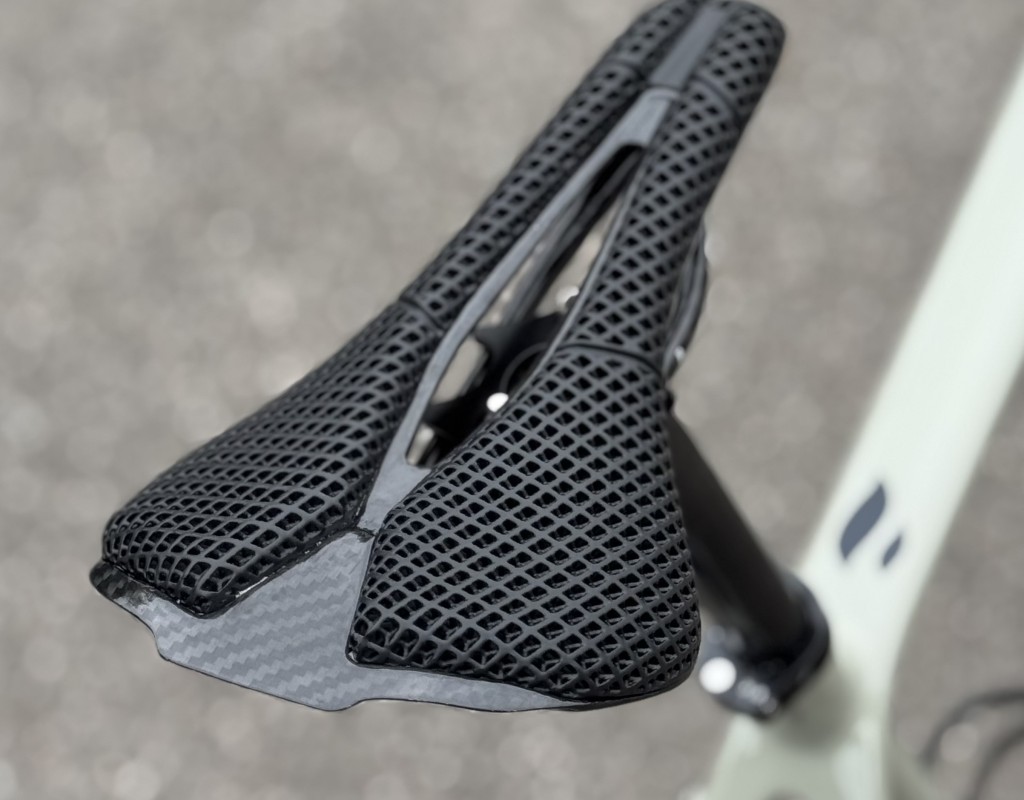

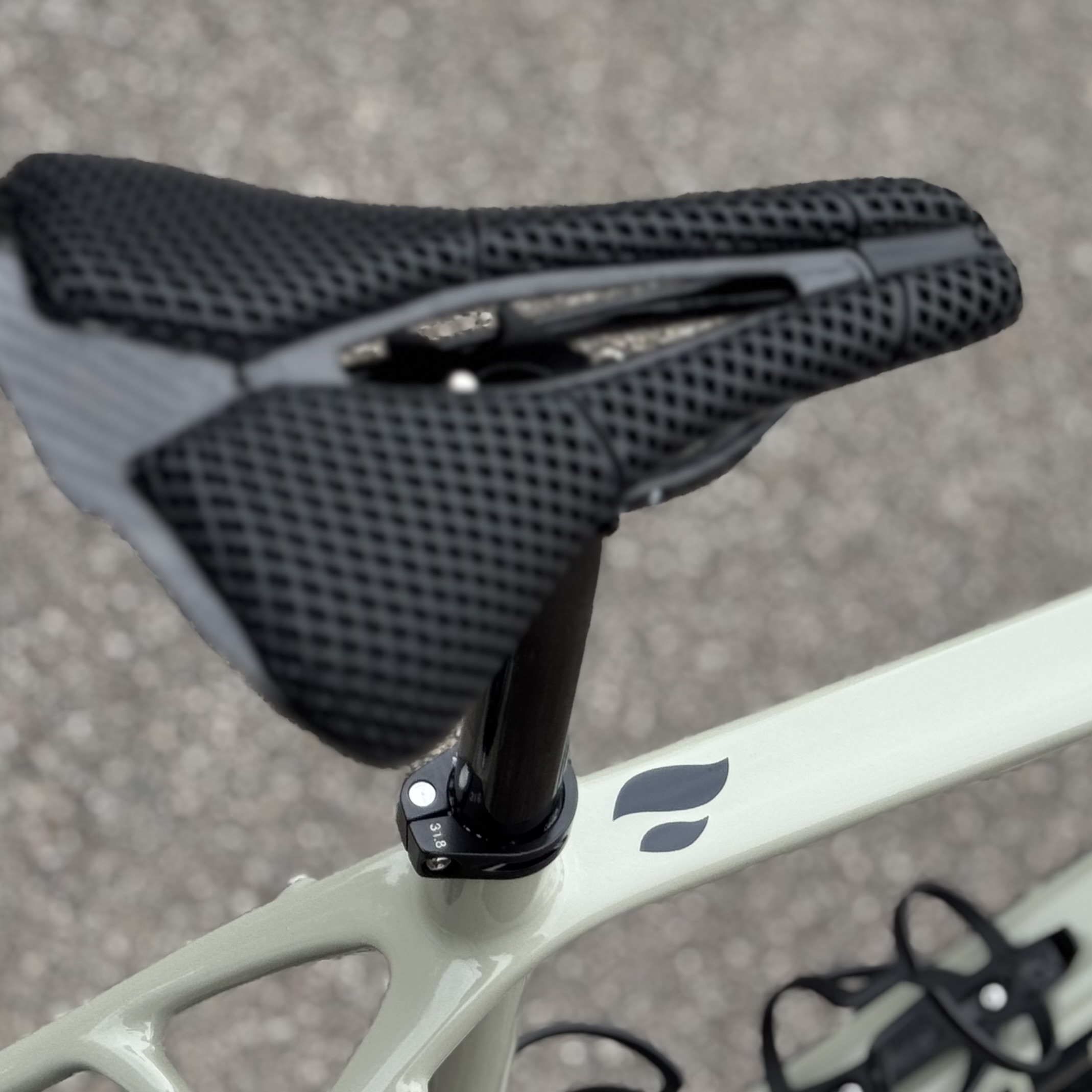

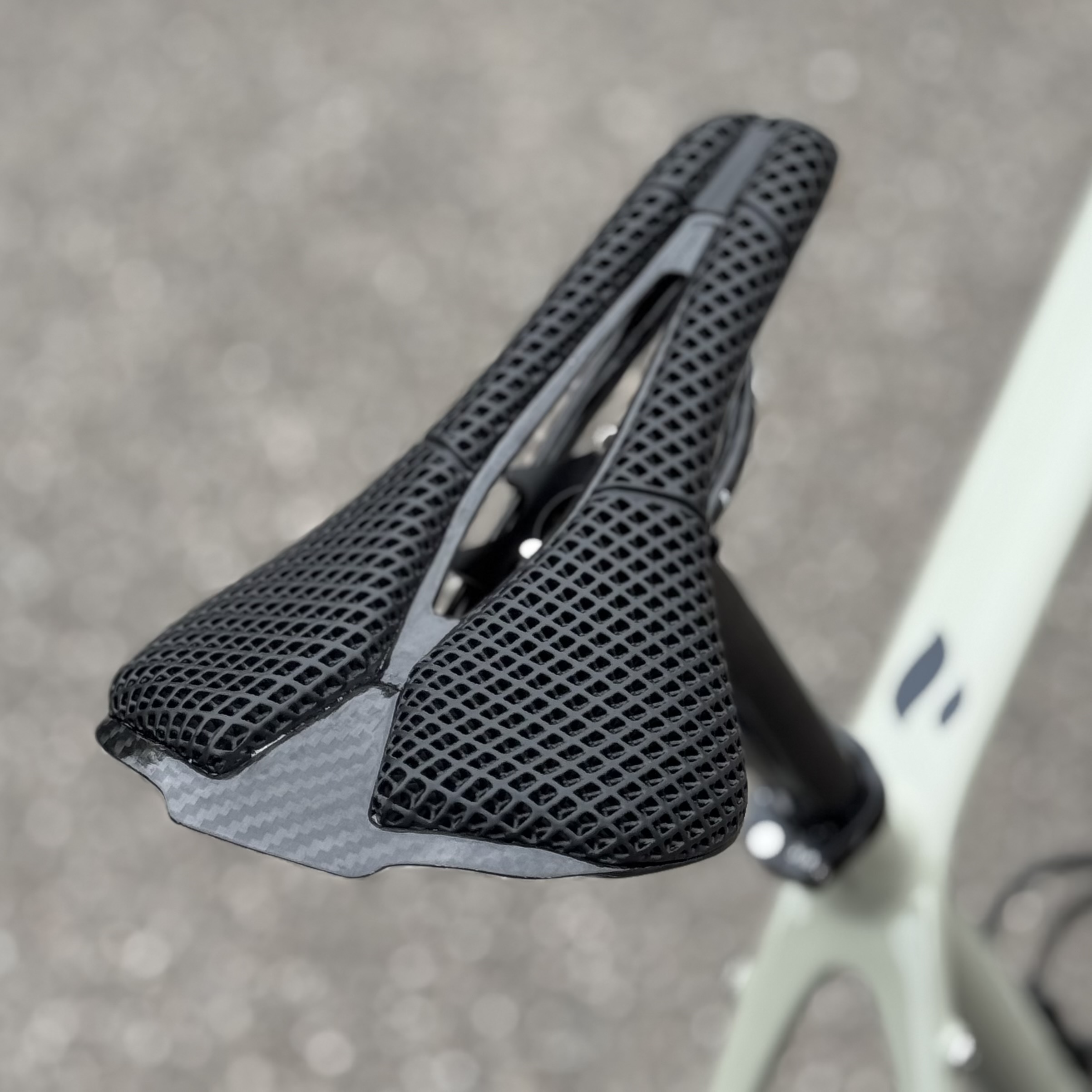

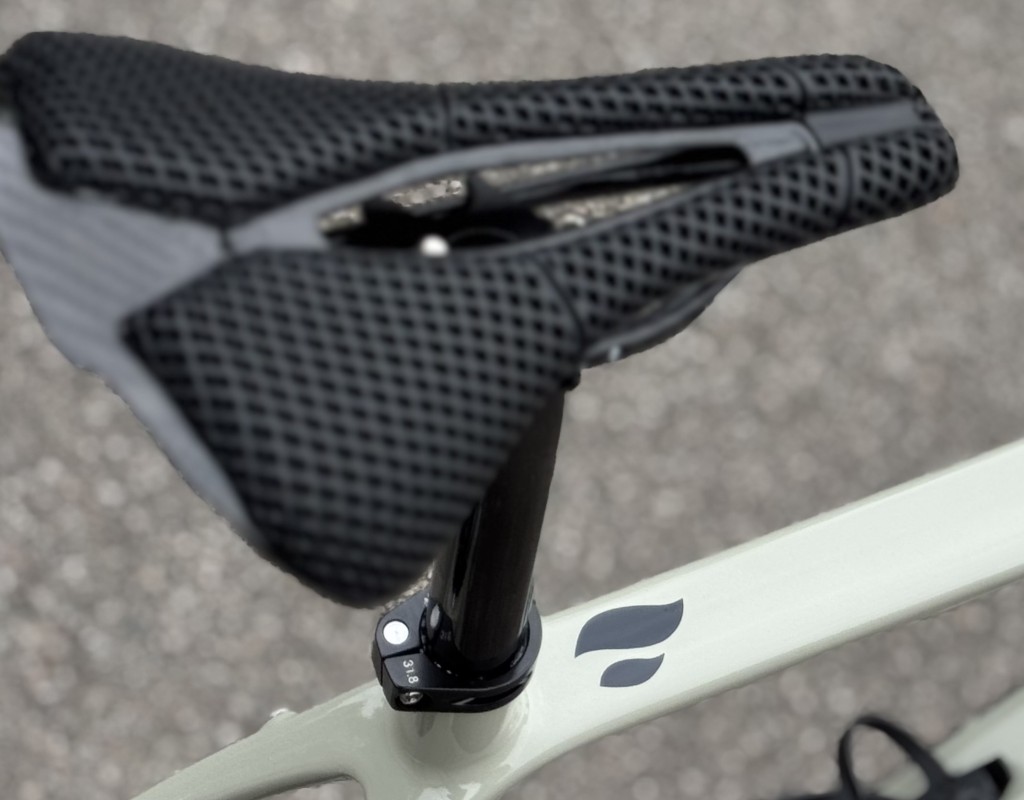

Saddle

Ride Fire FS01

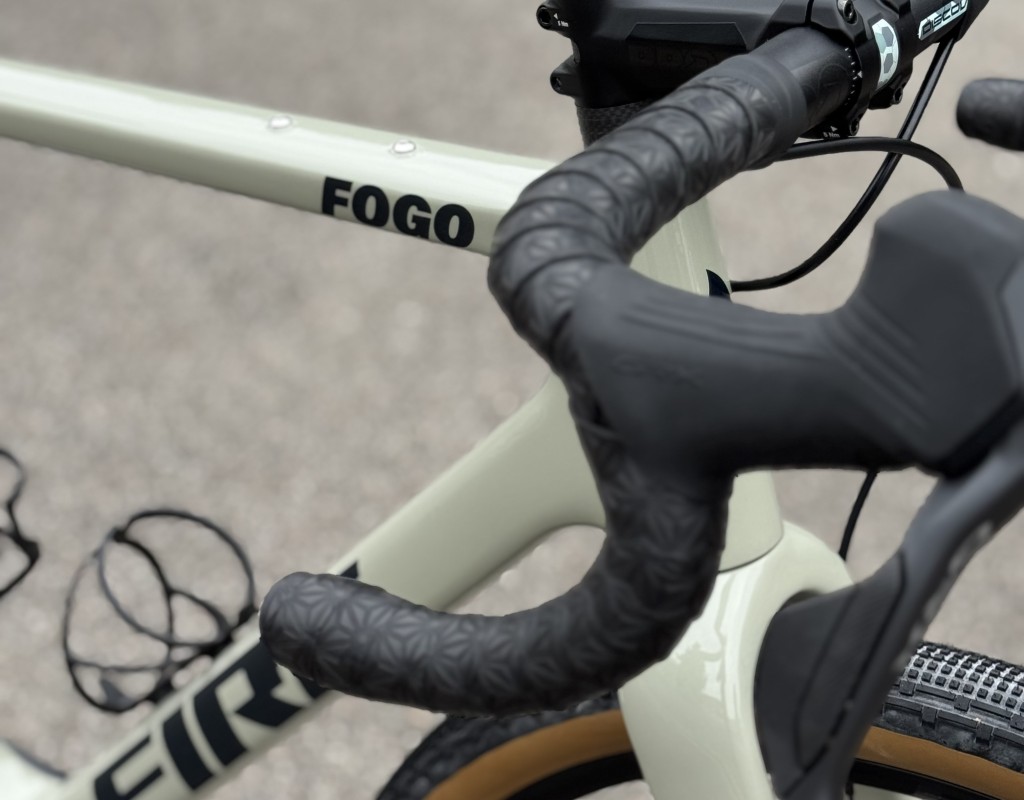

Shifters

Shimano GRX ST-RX820 (1x system)

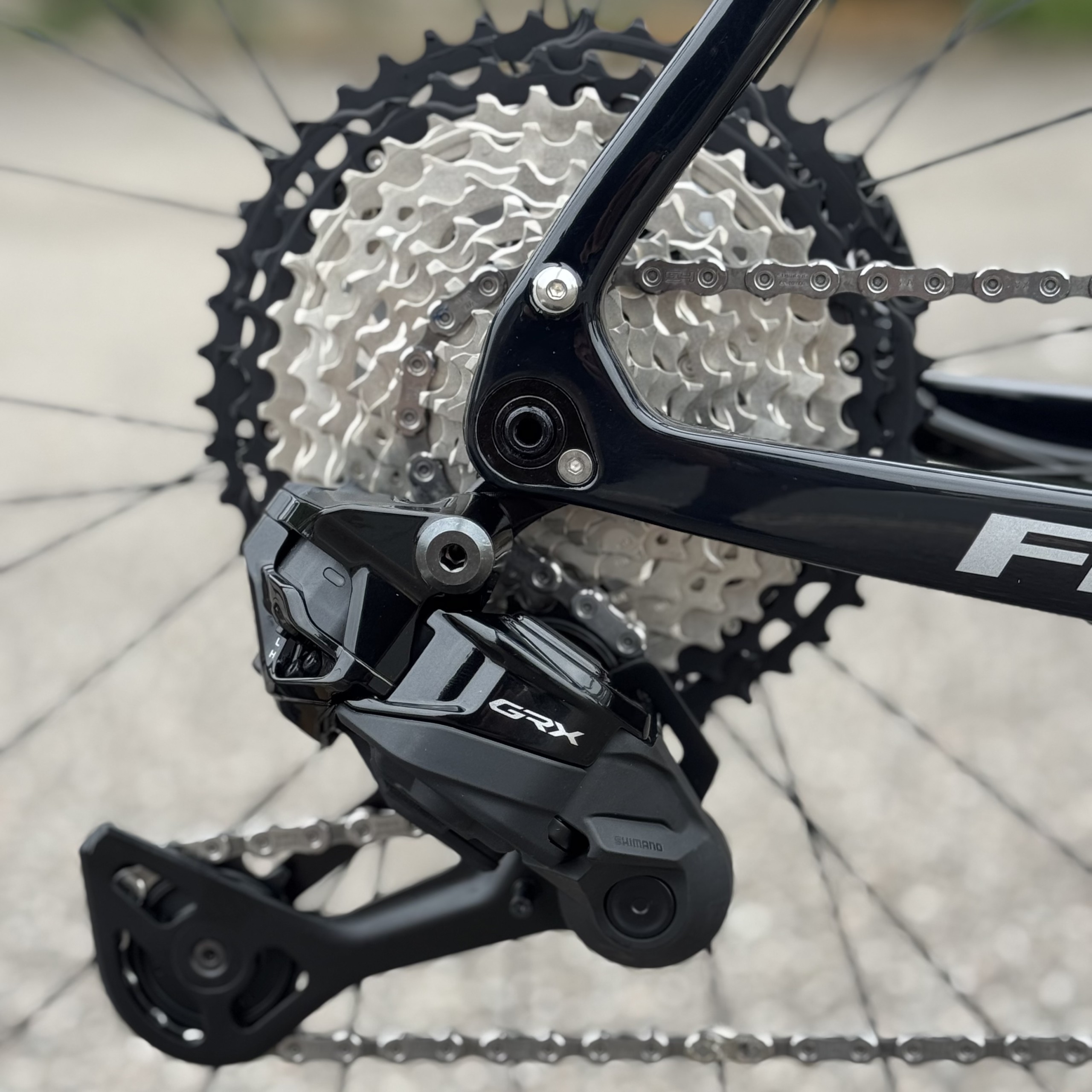

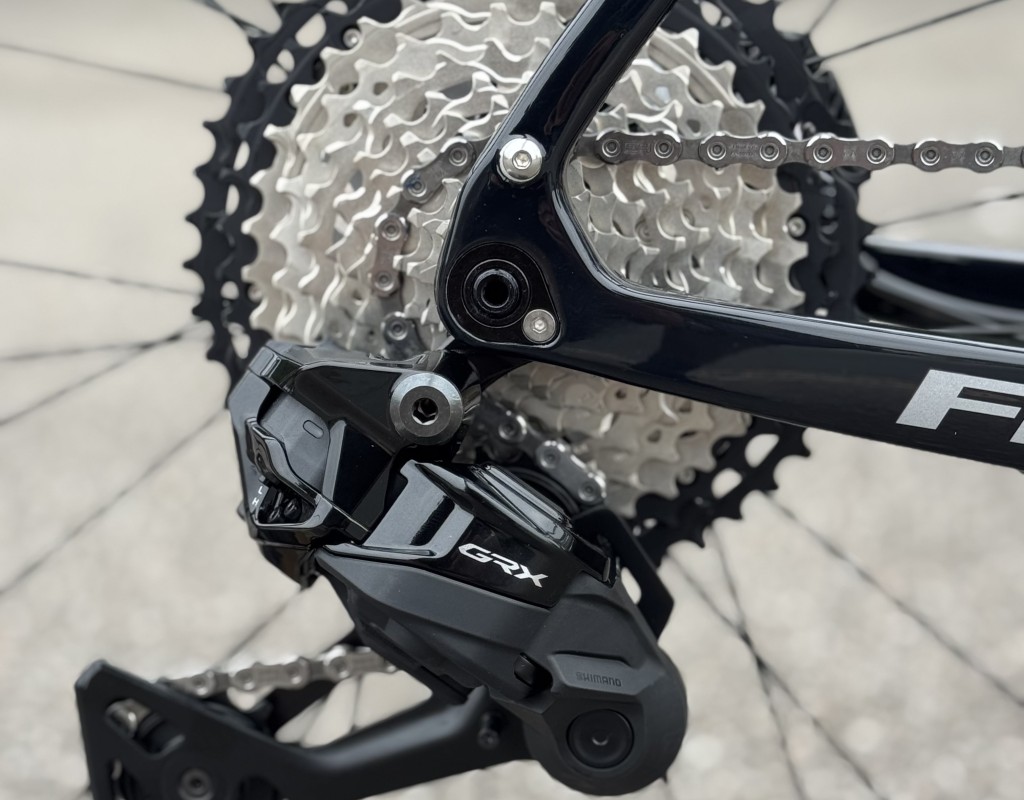

Rear derailleur

Shimano GRX RD-RX820

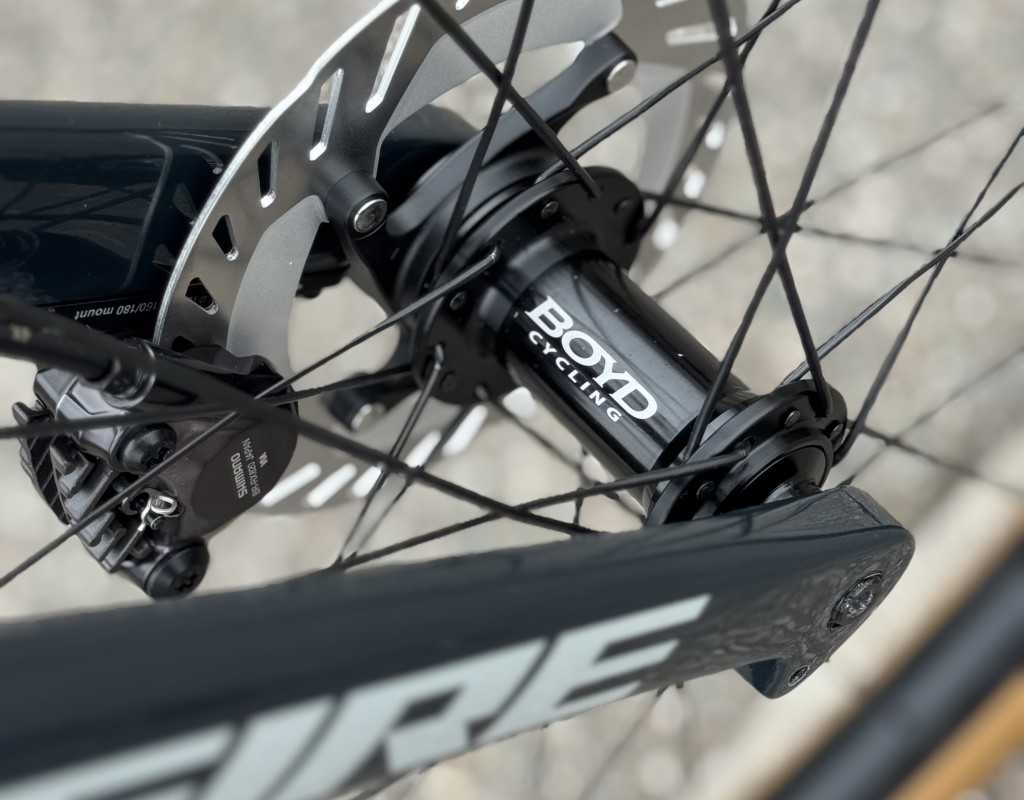

Brake calipers

Shimano GRX BR-RX820 flat mount

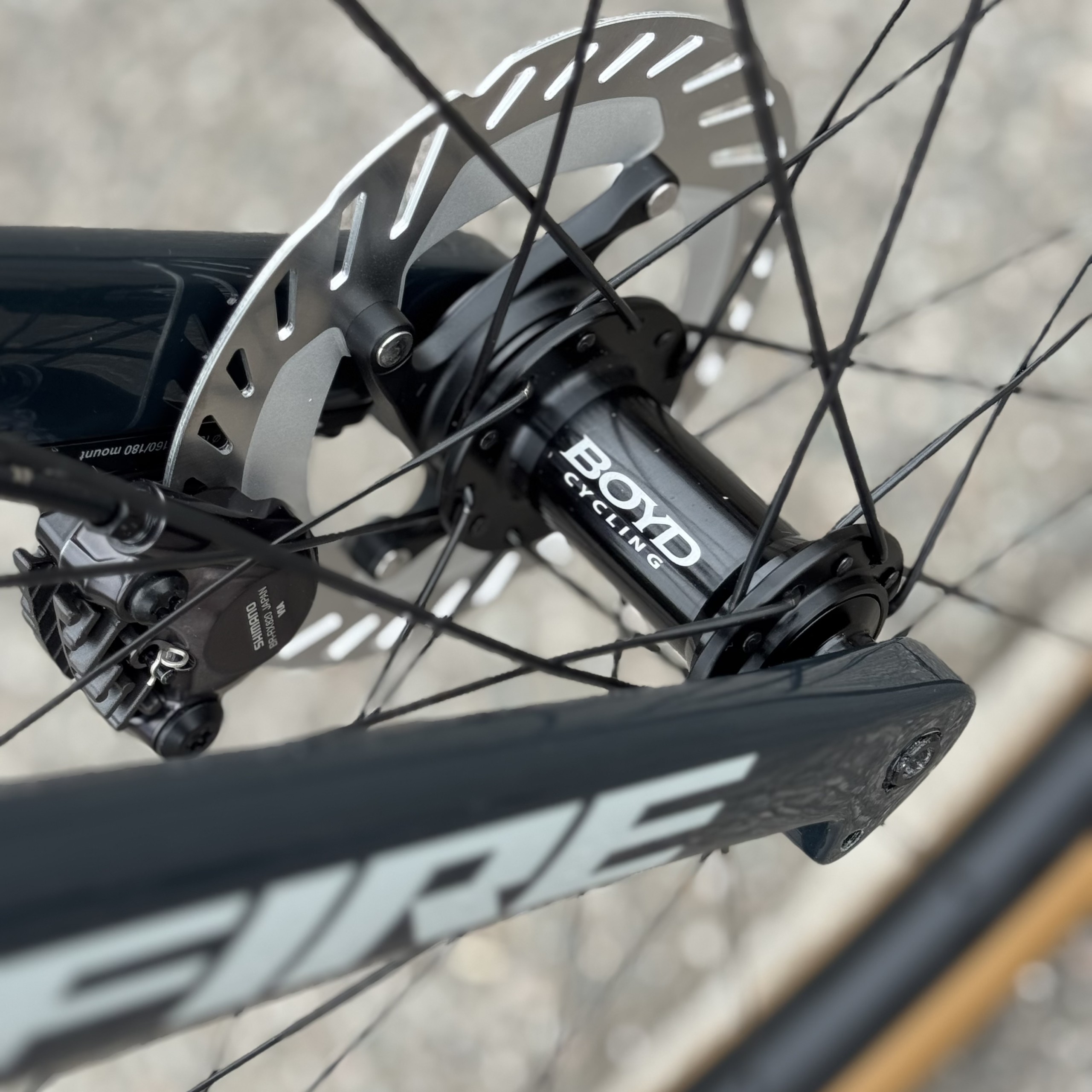

Disc rotors

Shimano Ultegra SMRT800S 160 (f) Shimano Ultegra SMRT800s 140 (r)

Cassette

Shimano CSHG710 (11-36)

Chain

Shimano CN-M8100

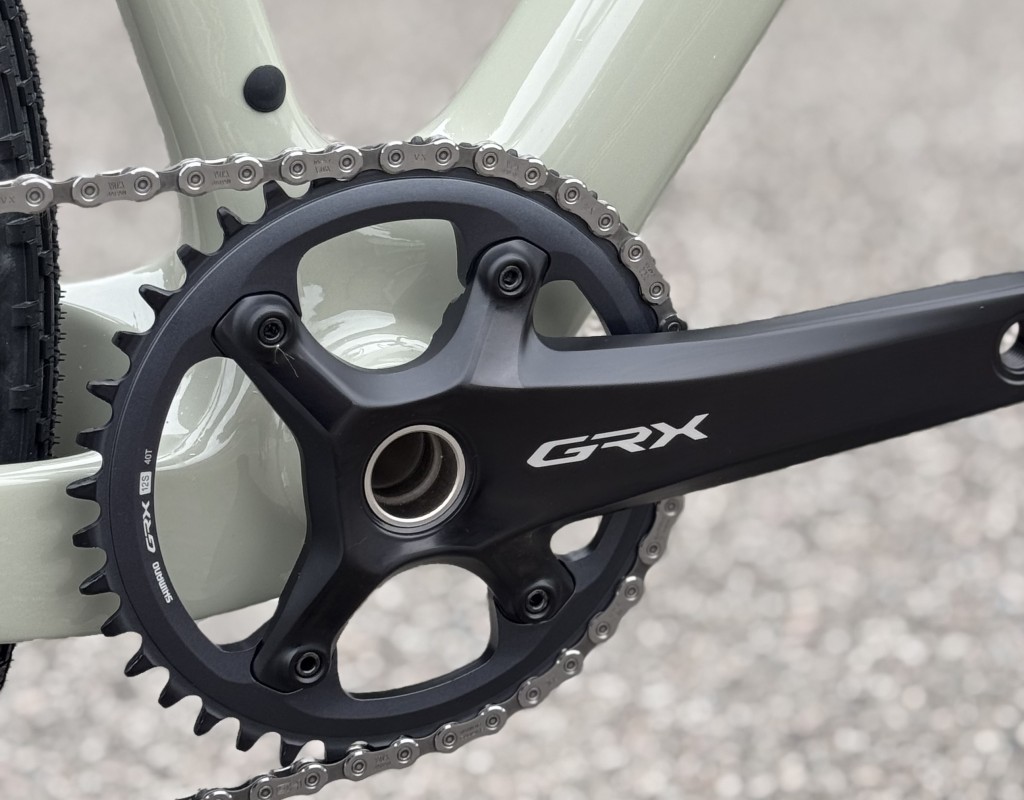

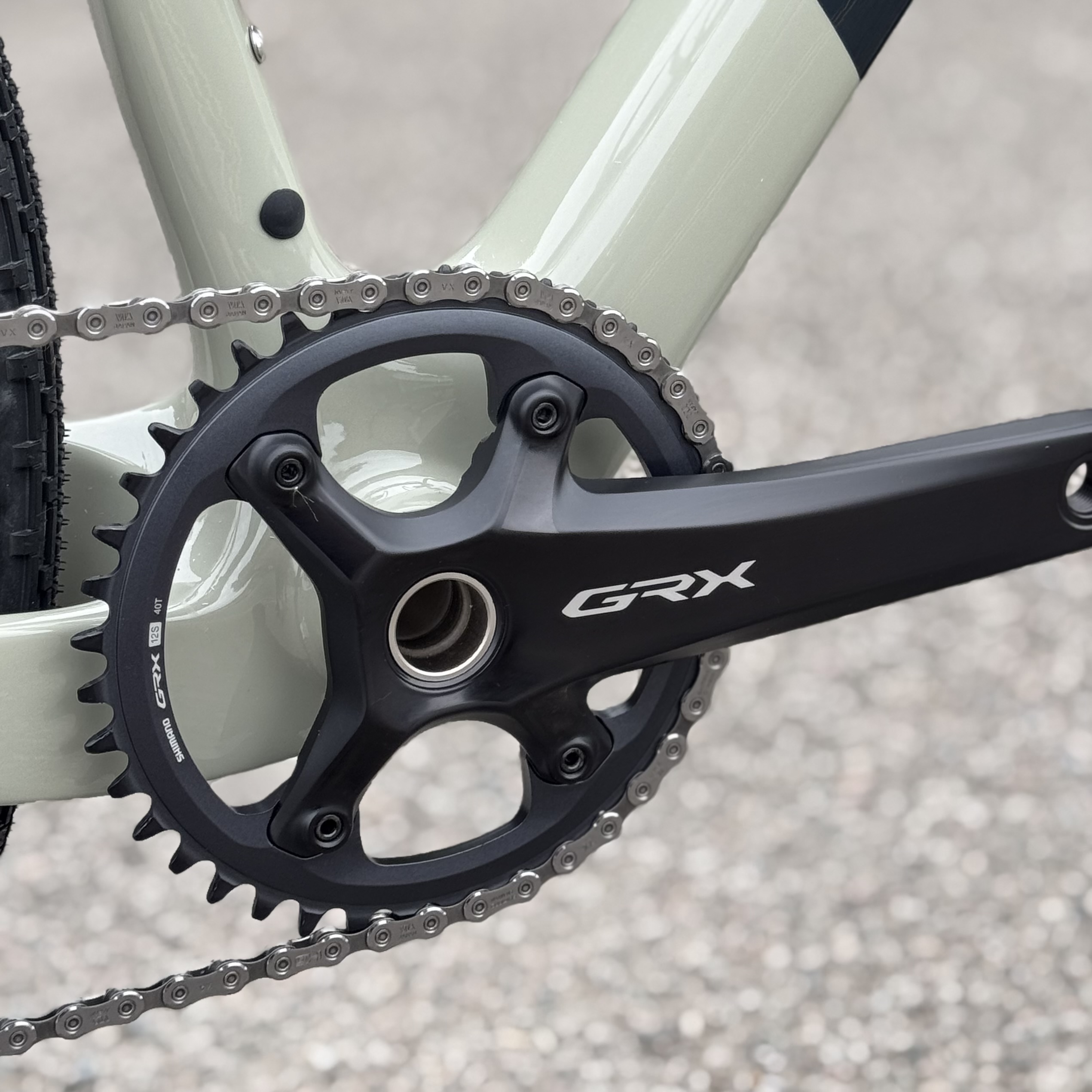

Crankset

Shimano GRX FC-RX820 (40T or 42T)

Bottom bracket

Shimano SM-BB71

Wheelset

Hunt X-Wide alloy gravel wheelset

Tyres

Schwalbe G-One TLE 35mm

Sizing

We are always here to help you with selecting the right size bike for you. Where as some may instinctively know which is the right size for them, so of you will need some guidance.

At Ride Fire we believe that rather than give you an online calculator that may or may not be correct, the best approach is to talk you through it, discuss your needs and if required, point you in the direction of a recommended bike fitter.

If you need any help at all, drop us a line info@ridefire.cc.

To help you along the way, here are our frame geometry charts.

Geometry

Size	50	53	55	57	59
Seat Tube Length Centre to Top (mm)	500	530	550	570	590
Effective Top Tube Length (mm)	525	540	560	580	600
Head Tube Length (mm)	115	130	150	170	190
Chain Stay Length (mm)	435	435	435	435	435
Seat Tube Angle	73.5°	73.5°	73.5°	73.5°	73.5°
Head Tube Angle	71°	71.5°	72°	72.5°	72.5°
Bottom Bracket Drop (mm)	70	70	70	70	70
Fork Rake (mm)	50	50	50	50	50
Wheelbase (mm)	1009	1020	1035	1051	1071
Stack (mm)	536	552	573	593	613
Reach (mm)	366	376	390	404	418
